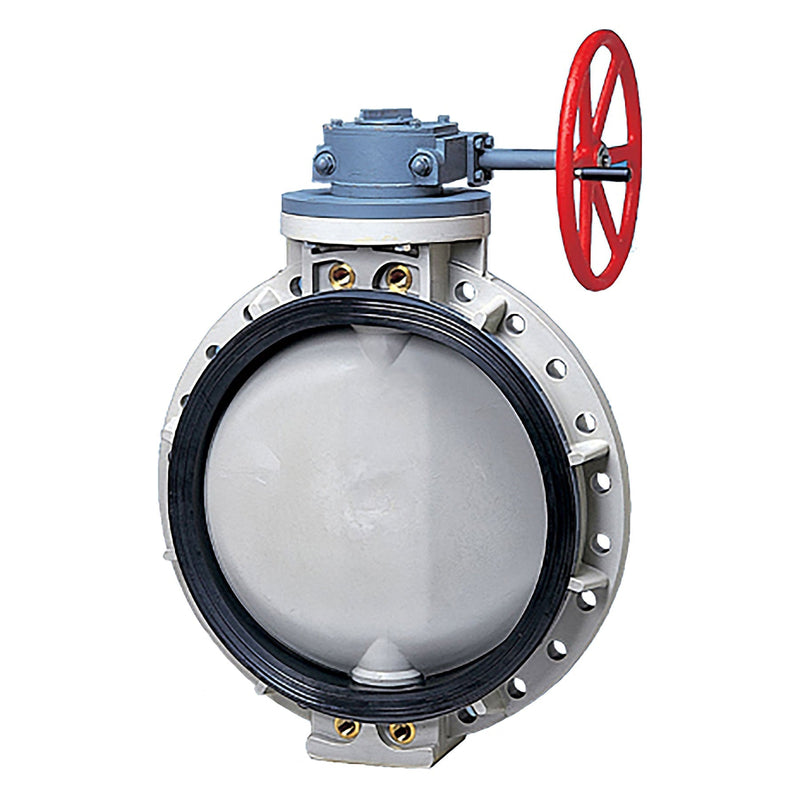

Type-75 Butterfly Valve

AsahiSKU: 3801-180

Grid List
18 in. PP/EPDM/PP
Size:
Material:
Price:
Sale price$18,546.00
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
18 in. PP/EPDM/PP
3801-180
$18,546.00
20 in. PP/EPDM/PP
3801-200
$20,682.00
24 in. PP/EPDM/PP
3801-240
$29,554.00
18 in. PP/FKM/PP
3803-180
$28,270.00
20 in. PP/FKM/PP
3803-200
$33,616.00
24 in. PP/FKM/PP
3803-240
$45,154.00
18 in. PVDF/EPDM/PVDF
3806-180
$51,297.00
20 in. PVDF/EPDM/PVDF
3806-200
$62,579.00
24 in. PVDF/EPDM/PVDF
3806-240
$78,678.00
18 in. PVDF/FKM/PVDF
3807-180
$64,401.00
20 in. PVDF/FKM/PVDF
3807-200
$90,774.00
24 in. PVDF/FKM/PVDF
3807-240
$103,630.00

Product has been added to your cart

Please input the Quantity!

Description

Type-75 Butterfly Valve

Type-75 butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both ON/OFF and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-75 butterfly valve is well suited for a wide variety of fluid flow applications. Can be pneumatically or electrically actuated.

Ideal Applications Include:

Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Features & Benefits:

  • Standard model (18 - 24 in.) has polypropylene body, disc and EPDM seat.
  • 403 stainless steel stem has full engagement over the entire length of the disc and is a non-wetted part totally isolated from the media
  • Bubble-tight seating
  • Only abrasion resistant, solid plastic disc and elastomeric liner are wetted parts
  • Rotork gear operator
Asahi Part Numbers: 3801180, 3801200, 3801240, 3803180, 3803200, 3803240, 3806180, 3806200, 3806240, 3807180, 3807200, 3807240
