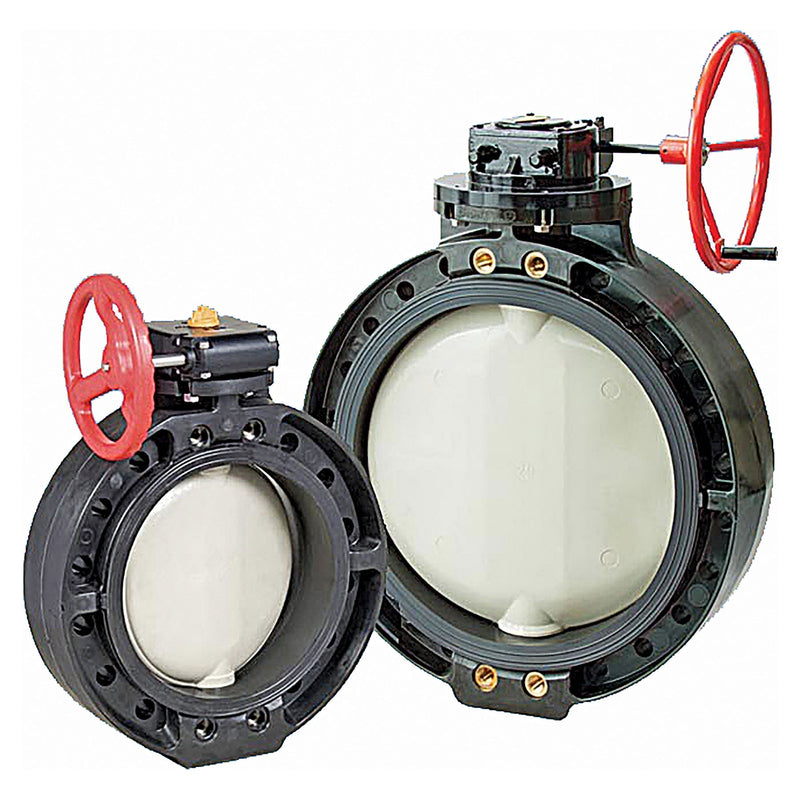

Asahi Type-56D/75D Butterfly Valve 16 to 24 in.
Roll over image to zoom in Click on image to zoom
Asahi Type-56D/75D Butterfly Valve 16 to 24 in.

Type-56D/75D Butterfly Valve

AsahiSKU: 3876-160
Grid List
16 in. EPDM/PP Type-56D/75D Butterfly Valve
Size:
Material:
Price:
$14,189.00
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
16 in. EPDM/PP Type-56D/75D Butterfly Valve
3876-160
$14,189.00
16 in. FKM/PP Type-56D/75D Butterfly Valve
3878-160
$23,546.00
16 in. EPDM/PVDF Type-56D/75D Butterfly Valve
3879-160
$18,183.00
16 in. FKM/PVDF Type-56D/75D Butterfly Valve
3880-160
$27,541.00
18 in. EPDM/PP Type-56D/75D Butterfly Valve
3876-180
$17,662.00
18 in. FKM/PP Type-56D/75D Butterfly Valve
3878-180
$26,923.00
18 in. EPDM/PVDF Type-56D/75D Butterfly Valve
3879-180
$23,313.00
18 in. FKM/PVDF Type-56D/75D Butterfly Valve
3880-180
$32,580.00
20 in. EPDM/PP Type-56D/75D Butterfly Valve
3876-200
$19,697.00
20 in. FKM/PP Type-56D/75D Butterfly Valve
3878-200
$32,015.00
20 in. EPDM/PVDF Type-56D/75D Butterfly Valve
3879-200
$28,599.00
20 in. FKM/PVDF Type-56D/75D Butterfly Valve
3880-200
$40,916.00
24 in. EPDM/PP Type-56D/75D Butterfly Valve
3876-240
$28,146.00
24 in. FKM/PP Type-56D/75D Butterfly Valve
3878-240
$43,003.00
24 in. EPDM/PVDF Type-56D/75D Butterfly Valve
3879-240
$37,502.00
24 in. FKM/PVDF Type-56D/75D Butterfly Valve
3880-240
$52,361.00

Product has been added to your cart

Please input the Quantity!

Description

Type-56D/75D High Pressure Butterfly Valves

Type-56D/75D butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-56D/75D butterfly valve is well suited for a wide variety of fluid flow applications. Can be be pneumatically or electrically actuated.

Ideal Applications Include:

Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Features & Benefits:

  • Standard model 16 - 24 in. has PDCPD body with PP Disc
  • Our 403 stainless steel shaft has full engagement over the entire length of the disc and is a non-wetted part, totally isolated from the media.
  • Higher pressure rating than standard 56 or 75 110 PSI at 70 degrees F - all sizes 16 - 24 in.
  • Seat over-tightening protection
  • Disc and seat only wetted parts
  • Bubble tight sealing
  • ISO bolt circle on top flange - No body or stem modifications required for accessories.
Asahi Part Numbers: 3876160, 3878160, 3879160, 3880160, 3876180, 3878180, 3879180, 3880180, 3876200, 3878200, 3879200, 3880200, 3876240, 3878240, 3879240, 3880240
