Series 19 CAV Failsafe Electric Actuated Omni Type-27 Ball Valve

AsahiSKU: 16107080003

Grid List
3/8 in. PVC Socket
Size:
Material:
Connection:
Price:
Sale price$968.00
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
3/8 in. PVC Socket
16107080003
$968.00
1/2 in. PVC Socket
16107080005
$970.00
3/4 in. PVC Socket
16107080007
$970.00
1 in. PVC Socket
16107080010
$978.00
1-1/4 in. PVC Socket
16107080012
$986.00
1-1/2 in. PVC Socket
16107080015
$995.00
2 in. PVC Socket
16107080020
$1,012.00
3/8 in. PVC Threaded
16107180003
$974.00
1/2 in. PVC Threaded
16107180005
$973.00
3/4 in. PVC Threaded
16107180007
$975.00
1 in. PVC Threaded
16107180010
$985.00
1-1/4 in. PVC Threaded
16107180012
$994.00
1-1/2 in. PVC Threaded
16107180015
$1,001.00
2 in. PVC Threaded
16107180020
$1,022.00
3/8 in. CPVC Socket
16107280003
$978.00
1/2 in. CPVC Socket
16107280005
$970.00
3/4 in. CPVC Socket
16107280007
$983.00
1 in. CPVC Socket
16107280010
$994.00
1-1/4 in. CPVC Socket
16107280012
$1,045.00
1-1/2 in. CPVC Socket
16107280015
$1,047.00
2 in. CPVC Socket
16107280020
$1,090.00
3/8 in. CPVC Threaded
16107380003
$976.00
1/2 in. CPVC Threaded
16107380005
$978.00
3/4 in. CPVC Threaded
16107380007
$982.00
1 in. CPVC Threaded
16107380010
$996.00
1-1/4 in. CPVC Threaded
16107380012
$1,045.00
1-1/2 in. CPVC Threaded
16107380015
$1,046.00
2 in. CPVC Threaded
16107380020
$1,090.00

Product has been added to your cart

Please input the Quantity!

Description

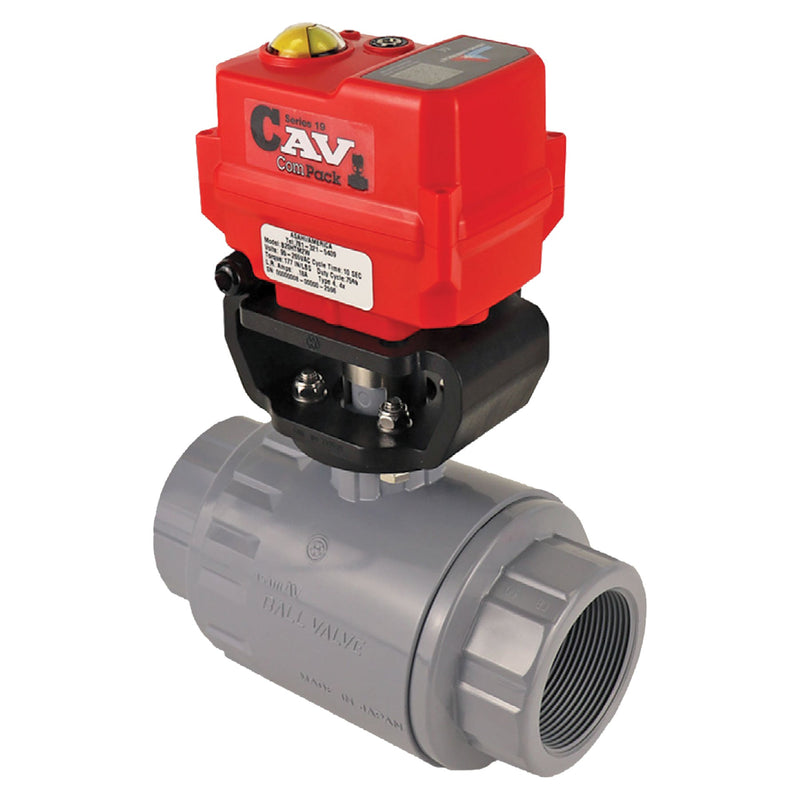

The basic Series 19 CAV Com Pack is a mechanical-type actuator available as a failsafe unit. The CAV Com Pack mounts on Asahi’s Type-27 Omni ball valves, Type-21 ball valves, and Type-23 Multiport ball valves to provide smooth operation in a compact and lightweight package. The Com Pack Series 19 fits Omni ball valve sizes 3/8 to 2 inch, Type-21 and Type-23 ball valve sizes 1/2 - 2 inch and has a cycle time of 10 seconds per 90 degrees.

Specifications:

  • Motor Type: Reversing, brushless DC
  • Sizes: C20 for 3/8 - 2 inch valves
  • Torque: 177 in-lbs
  • Voltage: 95 VAC to 265 VAC multi-voltage
  • Amp Draw: 0.18 Amp
  • Max Ambient Temp: 150 degrees F
  • Enclosure: NEMA 4X

Features & Benefits:

  • Compact: Perfect for OEM and skid manufacturers with a footprint of 2.75 in. x 4 in. up to a 2 in. ball valve
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Motor: Reversing, brushless DC motor
  • Capacitor Discharge System: A capacitor is used in place of batteries for failsafe mode
  • Fail Position: Fail close is standard; fail as is, or fail open are options
  • Gear Train: Permanently lubricated steel gears
  • Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
  • ISO mounting configuration
  • Electrical Connection: NEMA 4X cable gland with two-meter cable
  • Position Indication: Highly visible beacon position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp at 250 VAC, 0.5 Amp at 30 VDC
  • Space Heater: Internally wired to limit condensation
  • CE Compliant: All actuators are CE labeled and compliant
  • 75 Percent Duty Cycle: Extended duty cycle is ideal for high cycling applications QR Code: Links to user manual; includes wiring schematic
  • Simple Wiring: Wiring technique is the same for all voltage units
