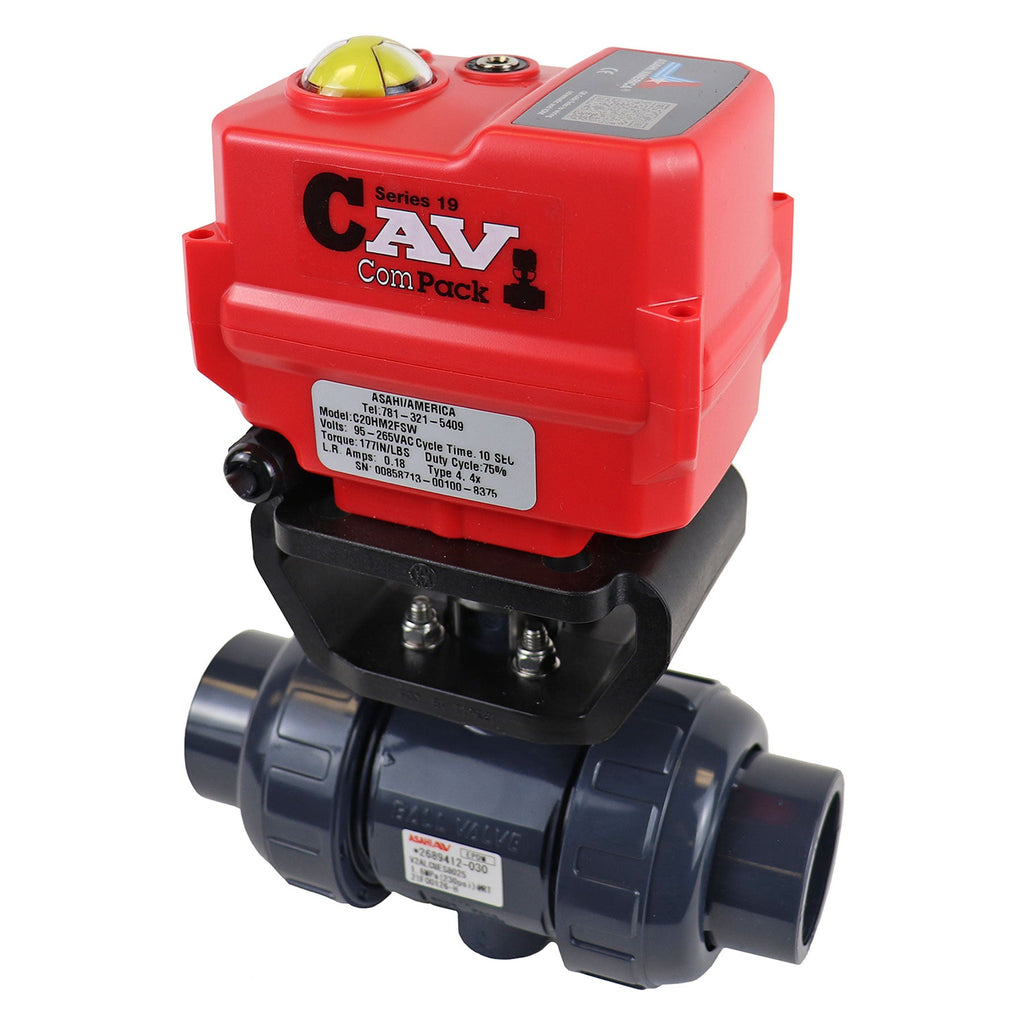

Series 19 CAV Electric Actuated Type-21A Ball Valve

AsahiSKU: 290230005

Grid List
1/2 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
Size:
Material:
Price:
Sale price$1,155.70
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230005
$1,155.70
3/4 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230007
$1,157.52
1 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230010
$1,172.08
1-1/4 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230012
$1,193.01
1-1/2 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230015
$1,201.20
2 in. PVC/EPDM Type-21A Series 19 Com Pack Fast Pack
290230020
$1,235.78
1/2 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630005
$1,163.89
3/4 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630007
$1,172.08
1 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630010
$1,188.46
1-1/4 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630012
$1,217.58
1-1/2 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630015
$1,229.41
2 in. PVC/FKM Type-21A Series 19 Com Pack Fast Pack
290630020
$1,274.00
1/2 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830005
$1,173.90
3/4 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830007
$1,190.28
1 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830010
$1,206.66
1-1/4 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830012
$1,251.25
1-1/2 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830015
$1,264.90
2 in. CPVC/EPDM Type-21A Series 19 Com Pack Fast Pack
291830020
$1,329.51
1/2 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230005
$1,182.09
3/4 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230007
$1,203.93
1 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230010
$1,221.22
1-1/4 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230012
$1,283.10
1-1/2 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230015
$1,291.29
2 in. CPVC/FKM Type-21A Series 19 Com Pack Fast Pack
292230020
$1,366.82

Product has been added to your cart

Please input the Quantity!

Description

Series 19 CAV Electric Actuated Type-21A Ball Valve

All Asahi/America Series 19 electric actuators come standard with multi-voltage capability, a visual position indicator; an LED light to indicate valve position or fault; auxiliary contacts; a QR code for easy and instant access to user manuals; and a heater. The Series 19 also features a corrosion resistant NEMA 4X engineered resin enclosure with stainless steel trim to protect the unit’s reversing, brushless DC motor and permanently-lubricated steel gear train.

Specifications:

  • Motor Type: Reversing, brushless DC
  • Sizes: C20 for 1/2 in. to 2 in. valves
  • Torque: 177 in-lbs
  • Voltage: 95 VAC to 265 VAC multi-voltage
  • Amp Draw: 0.18 Amp
  • Max Ambient Temp: 150 Degrees F
  • Enclosure: NEMA 4X

Standard Features:

  • Compact: Compact and lightweight actuated valve package that is ideal for OEMs
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Motor: Reversing, brushless DC motor
  • Gear Train: Permanently lubricated solid gears
  • Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
    ISO mounting configuration
  • Electrical Connection: NEMA 4X cable gland with two-meter cable
  • Position Indication: Highly visible dome position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Space Heater: A two-watt heater is internally wired to limit condensation
  • QR Code: Links to user manual; includes wiring schematic
  • CE Compliant: All actuators are CE labeled
  • 75% Duty Cycle: Extended duty cycles are ideal for high cycling applications

Asahi Part Numbers: 290230005, 290230007, 290230010, 290230012, 290230015, 290230020, 290630005, 290630007, 290630010, 290630012, 290630015, 290630020, 291830005, 291830007, 291830010, 291830012, 291830015, 291830020, 292230005, 292230007, 292230010, 292230012, 292230015, 292230020
