PVDF Swing Check Valve

AsahiSKU: 1203-007
No reviews

Grid List
3/4 in. PVDF Swing Check Valve
Size:
Price:
Sale price$1,231.00
Description
SKU
Price
Qty.
3/4 in. PVDF Swing Check Valve
1203-007
$1,231.00
1 in. PVDF Swing Check Valve
1203-010
$1,948.00
1-1/2 in. PVDF Swing Check Valve
1203-015
$2,808.00
2 in. PVDF Swing Check Valve
1203-020
$3,807.00
2-1/2 in. PVDF Swing Check Valve
1203-025
$5,048.00
3 in. PVDF Swing Check Valve
1203-030
$5,500.00
4 in. PVDF Swing Check Valve
1203-040
$8,508.00
5 in. PVDF Swing Check Valve
1203-050
$11,879.00
6 in. PVDF Swing Check Valve
1203-060
$15,943.00
8 in. PVDF Swing Check Valve
1203-080
$23,821.00

Product has been added to your cart

Please input the Quantity!

Description

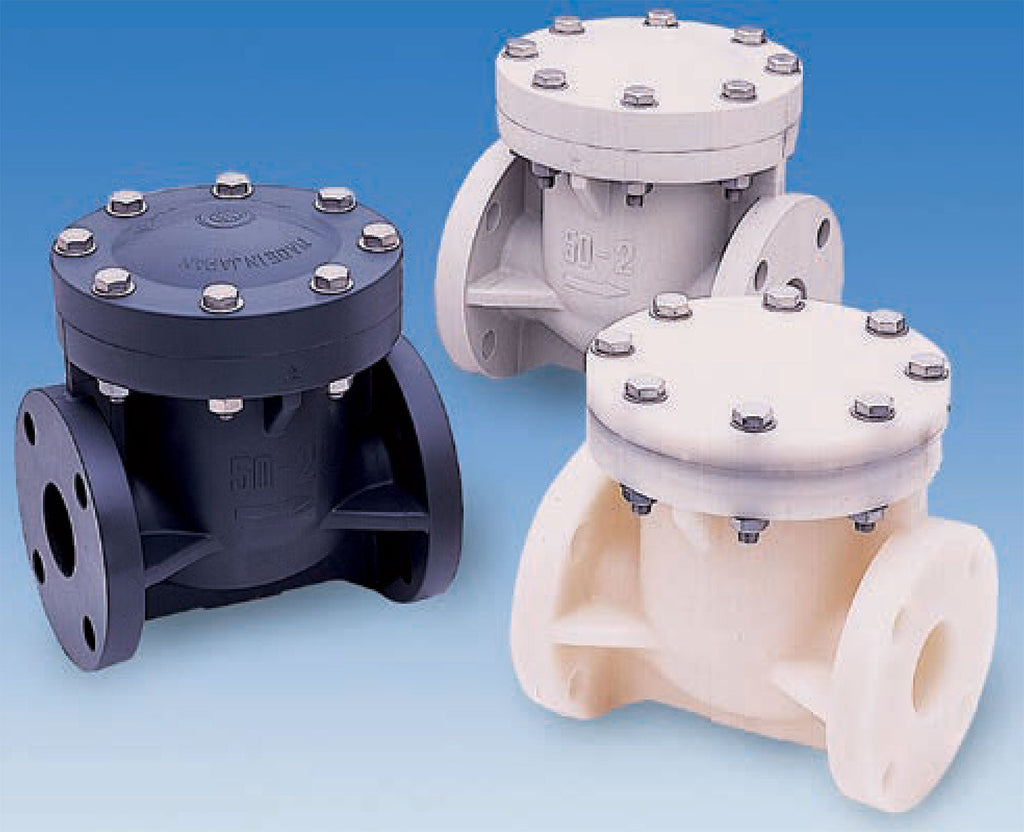

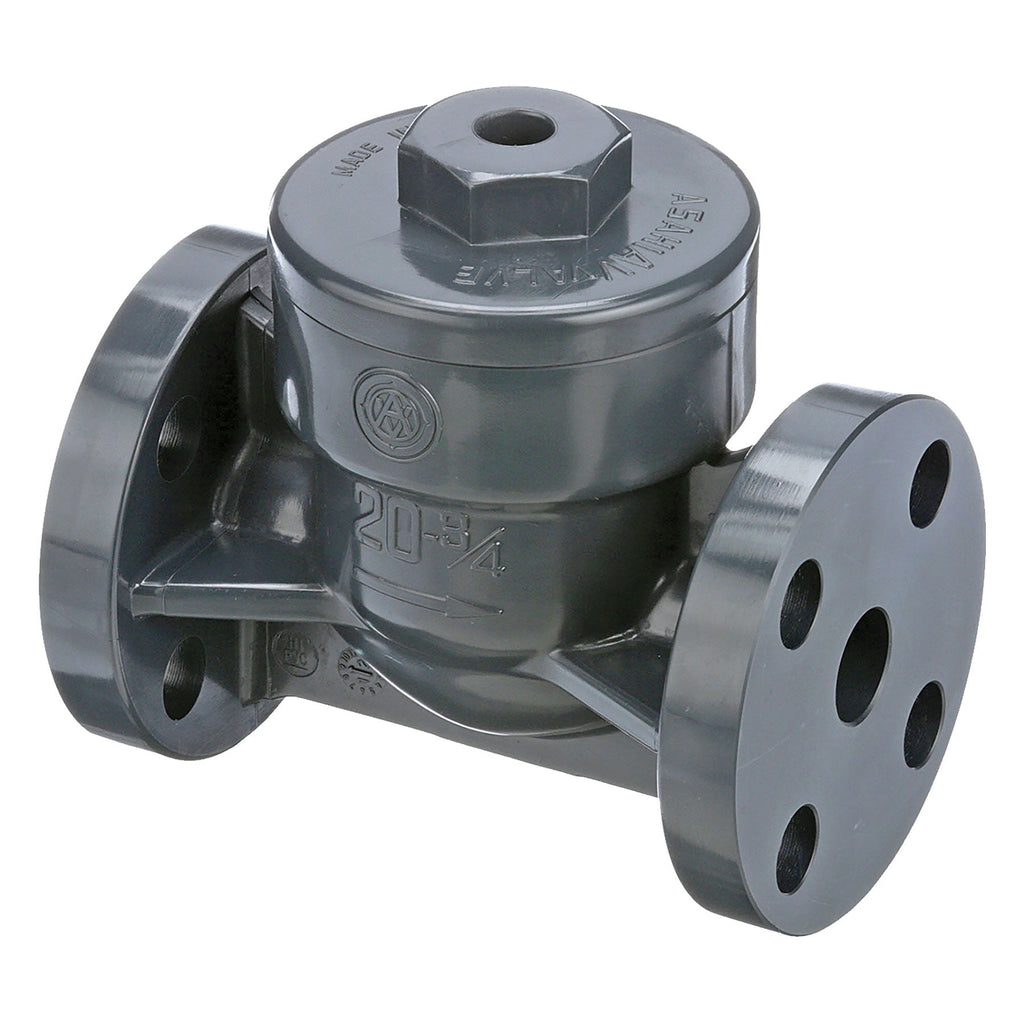

Swing Check Flanged Valve

Swing check valves have a solid thermoplastic body with a large "flapper" that seats against the body of the valve. Swing check valves offer a large fluid area with a removable bonnet that allows for the valve body to be cleaned out without removing the valve from the pipeline. This is beneficial for installations that may contain debris or other items that could potentially clog the valve. Check valves are used in applications where it is essential to ensure fluid flow passes in only one direction. Check valves can be mounted in vertical or horizontal directions, with the only restriction being a minimum back-pressure required to properly seat the check valve. Spring assists and lever and weight mechanisms are available options to assist in closing the valve quicker to reduce water hammer concerns.

Ideal Applications Include:

Tank inlets/outlets; preventing backflow into a pump; one-way mixing; water hammer mitigation; pressure balancing; process intakes. In the following industries: chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Features & Benefits:

  • Minimum flow resistance - Low pressure drop
  • Horizontal or vertical installation
  • All sizes rated for full vacuum service
  • Minimum back pressure to seat disc tightly
  • Top access cover facilitates maintenance without body removal from pipeline
  • All thermoplastic body
  • All PVC parts made of high impact PVC
  • PVC and PP valves come with EPDM seals (part #'s 5j, 5k, 6 and 7) as standard
  • PVDF valves, part #'s 5j and 7 of PTFE and 8 of PTFE/PFA
  • 3/4 in. PP valves supplied with Ring 1a
Note: Actuated and Flanged connection valves are special order with a 3-4 week average lead time.
