PP Flanged Diaphragm Valve

AsahiSKU: 1465-005
No reviews

Grid List
1/2 in. EPDM PP Flanged Diaphragm Valve
Size:
Diaphragm:
Price:
Sale price$231.00

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM PP Flanged Diaphragm Valve
1465-005
$231.00
3/4 in. EPDM PP Flanged Diaphragm Valve
1465-007
$251.00
1 in. EPDM PP Flanged Diaphragm Valve
1465-010
$318.00
1-1/4 in. EPDM PP Flanged Diaphragm Valve
1465-012
$400.00
1-1/2 in. EPDM PP Flanged Diaphragm Valve
1465-015
$491.00
2 in. EPDM PP Flanged Diaphragm Valve
1465-020
$579.00
2-1/2 in. EPDM PP Flanged Diaphragm Valve
1465-025
$820.00
3 in. EPDM PP Flanged Diaphragm Valve
1465-030
$942.00
4 in. EPDM PP Flanged Diaphragm Valve
1465-040
$1,381.00
5 in. EPDM PP Flanged Diaphragm Valve
1465-050
$2,032.00
6 in. EPDM PP Flanged Diaphragm Valve
1465-060
$2,712.00
8 in. EPDM PP Flanged Diaphragm Valve
1465-080
$5,954.00
10 in. EPDM PP Flanged Diaphragm Valve
1465-100
$10,124.00
1/2 in. PTFE PP Flanged Diaphragm Valve
1466-005
$341.00
3/4 in. PTFE PP Flanged Diaphragm Valve
1466-007
$358.00
1 in. PTFE PP Flanged Diaphragm Valve
1466-010
$482.00
1-1/4 in. PTFE PP Flanged Diaphragm Valve
1466-012
$569.00
1-1/2 in. PTFE PP Flanged Diaphragm Valve
1466-015
$711.00
2 in. PTFE PP Flanged Diaphragm Valve
1466-020
$870.00
2-1/2 in. PTFE PP Flanged Diaphragm Valve
1466-025
$1,216.00
3 in. PTFE PP Flanged Diaphragm Valve
1466-030
$1,507.00
4 in. PTFE PP Flanged Diaphragm Valve
1466-040
$2,118.00
5 in. PTFE PP Flanged Diaphragm Valve
1466-050
$3,621.00
6 in. PTFE PP Flanged Diaphragm Valve
1466-060
$4,691.00
8 in. PTFE PP Flanged Diaphragm Valve
1466-080
$7,099.00
10 in. PTFE PP Flanged Diaphragm Valve
1466-100
$13,320.00

Product has been added to your cart

Please input the Quantity!

Description

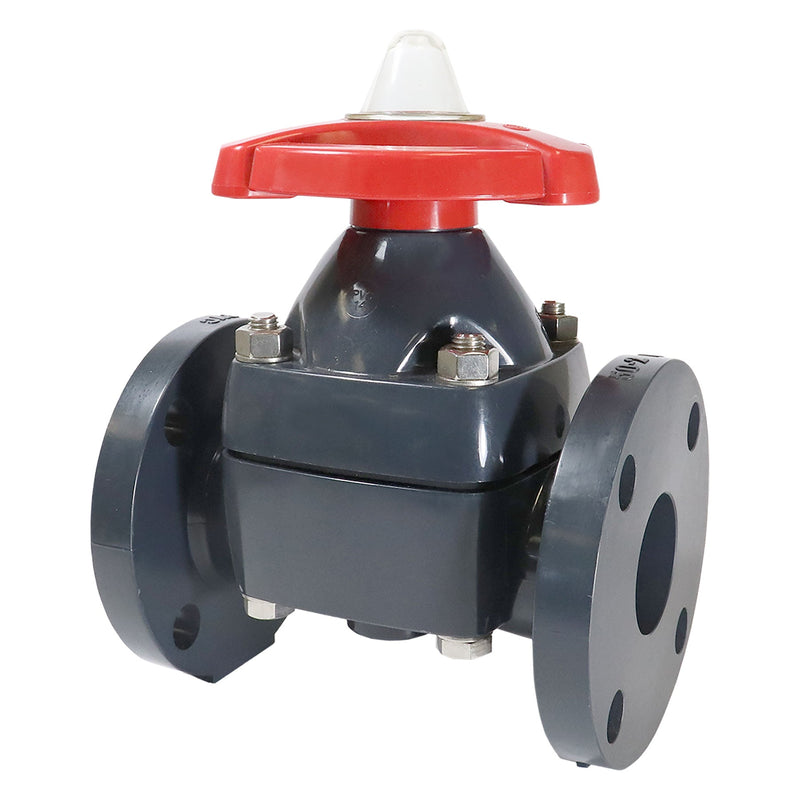

Type-14 Flanged Diaphragm Valve (1/2 - 4 in.)

The type-14 diaphragm valve features improved body to bonnet sealing performance, visual position indication, weir design for excellent throttling capabilities and built in travel stop to prevent over-tightening and eliminate compressive strain. Bubble-tight sealing can be achieved even in tough applications containing suspended particles or slurries.

Asahi's type-14 diaphragm valve features a layered EPDM/PTFE diaphragm which can accept the addition of a PVDF gas barrier for aggressive chemicals such as sodium hypochlorite. These aggressive chemicals produce an off-gas that can permeate the typical laminated PTFE layer and actually become delaminated in this highly corrosive environment leading to a potentially hazardous situation. The type-14's three-layer diaphragm, includes a gas barrier layer, which prevents this from ever occurring. The type-14 diaphragm valve body is of one-piece molded construction and is not fabricated. For maximum corrosion resistance, the type-14 diaphragm valve's rugged body and bonnet are manufactured from solid thermoplastic materials. The type-14 diaphragm valve can be pneumatically or electrically actuated.

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Features & Benefits:

Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.

  • Flanged (ANSI) face-to-face dimensions are equivalent to most commonly used metallic valves
  • Rugged body and bonnet are of solid thermoplastic for maximum corrosion resistance
  • Uniquely designed body and bonnet together with diaphragms of new sealing designs by computer dynamic analysis for superior sealing
  • Weir design for excellent throttling
  • Bubble-tight sealing, even in applications such as slurries or suspended particles
  • Bonnet seals to protect internals from corrosive environments
  • Built-in travel stop to prevent over-tightening or compressive strain on diaphragm
  • Integrally molded bottom stand for simple yet firm panel mounting
  • Indicator at the top for indication of valve position and prevention of over-tightening
  • PVDF gas barrier, which protects EPDM backing from gas permeation, is standard for all valves with PTFE Diaphragm
  • Low profile
  • Bayonet structure to connect compressor and diaphragm _ easy diaphragm replacement

Type-15 Diaphragm Valve (5 - 6 in.)

Multiturn valve good for flow control and use with viscous/slurry lines due to their high resistance to clogging. These valves have a uniquely designed body and bonnet, as well as a diaphragm with new sealing designs, by computer aided analysis for superior sealing.

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Features & Benefits:

Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.

  • Flanged face-to-face dimensions are equivalent to those of Type-G diaphragm valve
  • Rugged body and bonnet are of solid thermoplastic for maximum corrosion resistance
  • Bubble-tight sealing, even in applications such as slurries or suspended particles
  • Weir design for excellent throttling
  • Uniquely designed body and bonnet together with diaphragms of new sealing designs by the state-of-the-art computer aided analysis for superior sealing
  • Bonnet seals to protect internals from corrosive environments
  • Built-in travel stop to prevent diaphragm from being over-tightened
  • Indicator at the top for valve position and prevention of over-tightening
  • PVDF gas barrier, which protects EPDM backing cushion from gas permeation, is standard for all valves with PTFE diaphragm

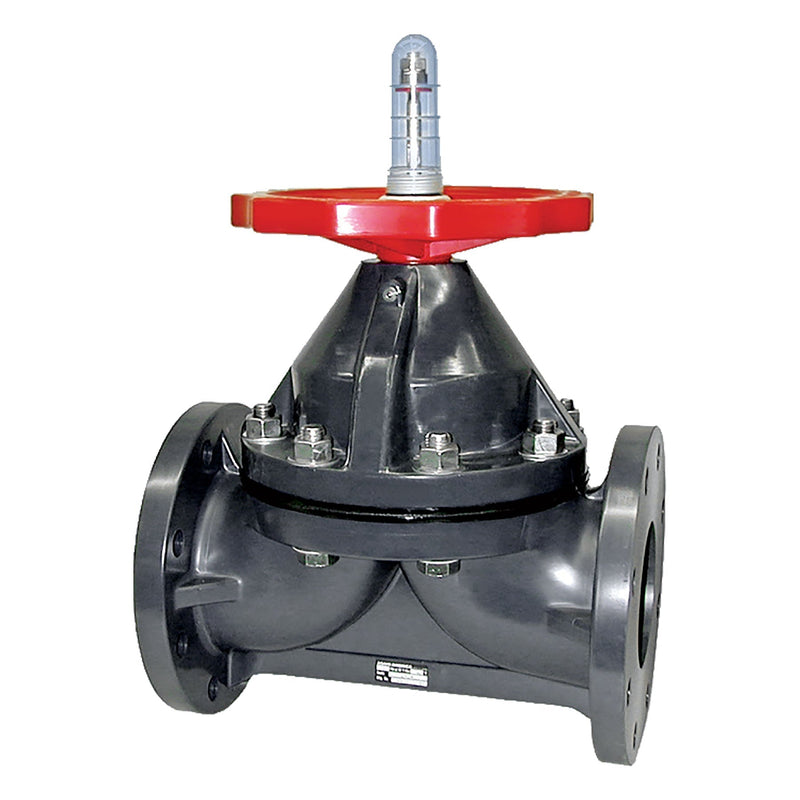

Type-G Flanged Diaphragm Valve (8 - 10 in.)

Multiturn valves good for flow control and use with viscous/slurry lines due to their high resistance to clogging. The Type-G is the largest of the Asahi diaphragm valves, available only in 8 and 10 in. sizes with flanged end connections.

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Features & Benefits:

Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.

  • Rugged body and bonnet of solid thermoplastic for maximum corrosion resistance
  • Weir design for excellent throttling
  • Bubble-tight sealing, even in applications such as slurries or suspended particles
  • Bonnet seals to protect internals from corrosive environments
  • Built-in travel stop to prevent diaphragm from being over-tightened
  • Indicator at the top for valve position
  • PVDF gas barrier, which protects backing cushion from gas permeation, is standard for all valves with PTFE diaphragm

Note: Actuated and Flanged connection valves are special order with a 3-4 week average lead time.

Asahi Part Numbers:æ1465005, 1465007, 1465010, 1465012, 1465015, 1465020, 1465025, 1465030, 1465040, 1465050, 1465060, 1132080, 1132100, 1466005, 1466007, 1466010, 1466012, 1466015, 1466020, 1466025, 1466030, 1466040, 1466050, 1466060, 1133080, 1133100
