CPVC Type-14 Diaphragm Valve

AsahiSKU: 6758-005-S
No reviews

Grid List
1/2 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
Size:
Material:
Connection:
Price:
Sale price$218.00
Description
SKU
Price
Qty.
1/2 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-005-S
$218.00
1/2 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-005-T
$218.00
3/4 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-007-S
$237.00
3/4 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-007-T
$237.00
1 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-010-S
$303.00
1 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-010-T
$303.00
1-1/4 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-012-S
$463.00
1-1/4 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-012-T
$463.00
1-1/2 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-015-S
$463.00
1-1/2 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-015-T
$463.00
2 in. PP/EPDM Socket CPVC Type-14 Diaphragm Valve
6758-020-S
$549.00
2 in. PP/EPDM Threaded CPVC Type-14 Diaphragm Valve
6758-020-T
$549.00
1/2 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-005-S
$319.00
1/2 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-005-T
$319.00
3/4 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-007-S
$346.00
3/4 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-007-T
$346.00
1 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-010-S
$453.00
1 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-010-T
$453.00
1-1/4 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-012-S
$673.00
1-1/4 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-012-T
$673.00
1-1/2 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-015-S
$673.00
1-1/2 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-015-T
$673.00
2 in. PP/PTFE Socket CPVC Type-14 Diaphragm Valve
6759-020-S
$827.00
2 in. PP/PTFE Threaded CPVC Type-14 Diaphragm Valve
6759-020-T
$827.00

Product has been added to your cart

Please input the Quantity!

Description

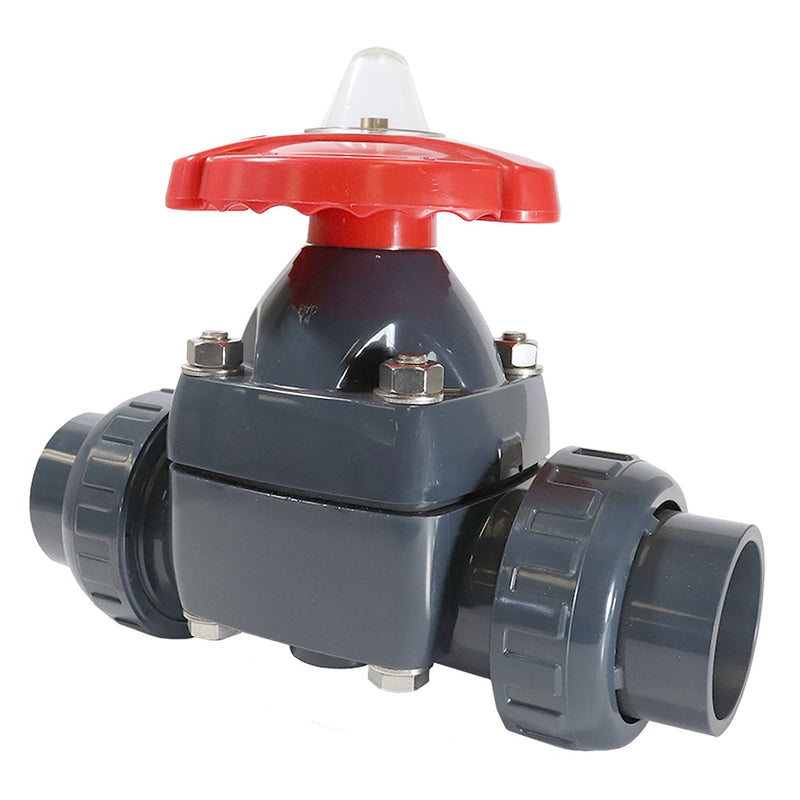

Type-14 True Union Diaphragm Valve

The type-14 diaphragm valve features improved body to bonnet sealing performance, visual position indication, weir design for excellent throttling capabilities and built in travel stop to prevent over-tightening and eliminate compressive strain. Bubble tight sealing can be achieved even in tough applications containing suspended particles or slurries.

Asahi's type-14 diaphragm valve features a layered EPDM/PTFE diaphragm which can accept the addition of a PVDF gas barrier for aggressive chemicals such as sodium hypochlorite. These aggressive chemicals produce an off-gas that can permeate the typical laminated PTFE layer and actually become delaminated in this highly corrosive environment leading to a potentially hazardous situation. The Type-14's three-layer diaphragm includes the gas barrier layer, which prevents this from ever occurring. The type-14 diaphragm valve body is of one-piece molded construction and is not fabricated. For maximum corrosion resistance, the type-14 diaphragm valve's rugged body and bonnet are manufactured of solid thermoplastic materials. The type-14 diaphragm valve can be pneumatically or electrically actuated.

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Features & Benefits:

  • Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.
  • True union design permits installation or repairs without expanding pipeline
  • Rugged-square body and bonnet are of solid thermoplastic for maximum corrosion resistance
  • Uniquely designed body and bonnet together with diaphragms of new sealing designs by the state-of-the-art computer aided analysis for superior sealing
  • Weir design for excellent throttling
  • Full-vacuum rated
  • Bonnet seals to protect internals from corrosive environments
  • Adjustable travel stop to prevent diaphragm from being over-tightened
  • Bayonet structure to connect compressor and diaphragm for quick maintenance
  • Integrally molded bottom stand for simple yet firm panel mounting
  • Indicator at the top for valve position
  • PVDF gas barrier, which protects EPDM backing cushion from gas permeation, is standard for all valves with PTFE diaphragm
  • Low profile
