1/2 Inch PVDF Type-14 Diaphragm Valve

AsahiSKU: 6762-005-DS

Price:
Sale price$376.25
Stock:
In stock (2 units), ready to be shipped

Product has been added to your cart

Please input the Quantity!

Description

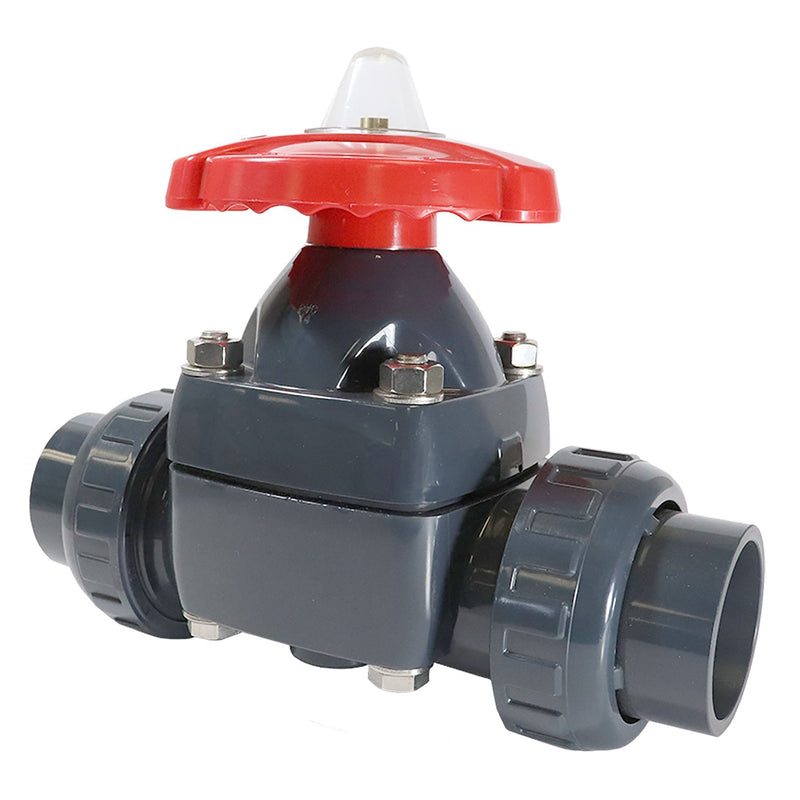

Type-14 True Union Diaphragm Valve

The type-14 diaphragm valve features improved body to bonnet sealing performance, visual position indication, weir design for excellent throttling capabilities and built in travel stop to prevent over-tightening and eliminate compressive strain. Bubble tight sealing can be achieved even in tough applications containing suspended particles or slurries.

Asahi's type-14 diaphragm valve features a layered EPDM/PTFE diaphragm which can accept the addition of a PVDF gas barrier for aggressive chemicals such as sodium hypochlorite. These aggressive chemicals produce an off-gas that can permeate the typical laminated PTFE layer and actually become delaminated in this highly corrosive environment leading to a potentially hazardous situation. The Type-14's three-layer diaphragm includes the gas barrier layer, which prevents this from ever occurring. The type-14 diaphragm valve body is of one-piece molded construction and is not fabricated. For maximum corrosion resistance, the type-14 diaphragm valve's rugged body and bonnet are manufactured of solid thermoplastic materials. The type-14 diaphragm valve can be pneumatically or electrically actuated.

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Features & Benefits:

  • Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.
  • True union design permits installation or repairs without expanding pipeline
  • Rugged-square body and bonnet are of solid thermoplastic for maximum corrosion resistance
  • Uniquely designed body and bonnet together with diaphragms of new sealing designs by the state-of-the-art computer aided analysis for superior sealing
  • Weir design for excellent throttling
  • Full-vacuum rated
  • Bonnet seals to protect internals from corrosive environments
  • Adjustable travel stop to prevent diaphragm from being over-tightened
  • Bayonet structure to connect compressor and diaphragm for quick maintenance
  • Integrally molded bottom stand for simple yet firm panel mounting
  • Indicator at the top for valve position
  • PVDF gas barrier, which protects EPDM backing cushion from gas permeation, is standard for all valves with PTFE diaphragm
  • Low profile
Asahi Part Numbers: 1548005, 1547005, 1546005, 1549005, 1548007, 1547007, 1546007, 1549007, 1548010, 1547010, 1546010, 1549010, 1548012, 1547012, 1546012, 1549012, 1548015, 1547015, 1546015, 1549015, 1548020, 1547020, 1546020, 1549020, 1544005, 1543005, 1542005, 1545005, 1544007, 1543007, 1542007, 1545007, 1544010, 1543010, 1542010, 1545010, 1544012, 1543012, 1542012, 1545012, 1544015, 1543015, 1542015, 1545015, 1544020, 1543020, 1542020, 1545020
