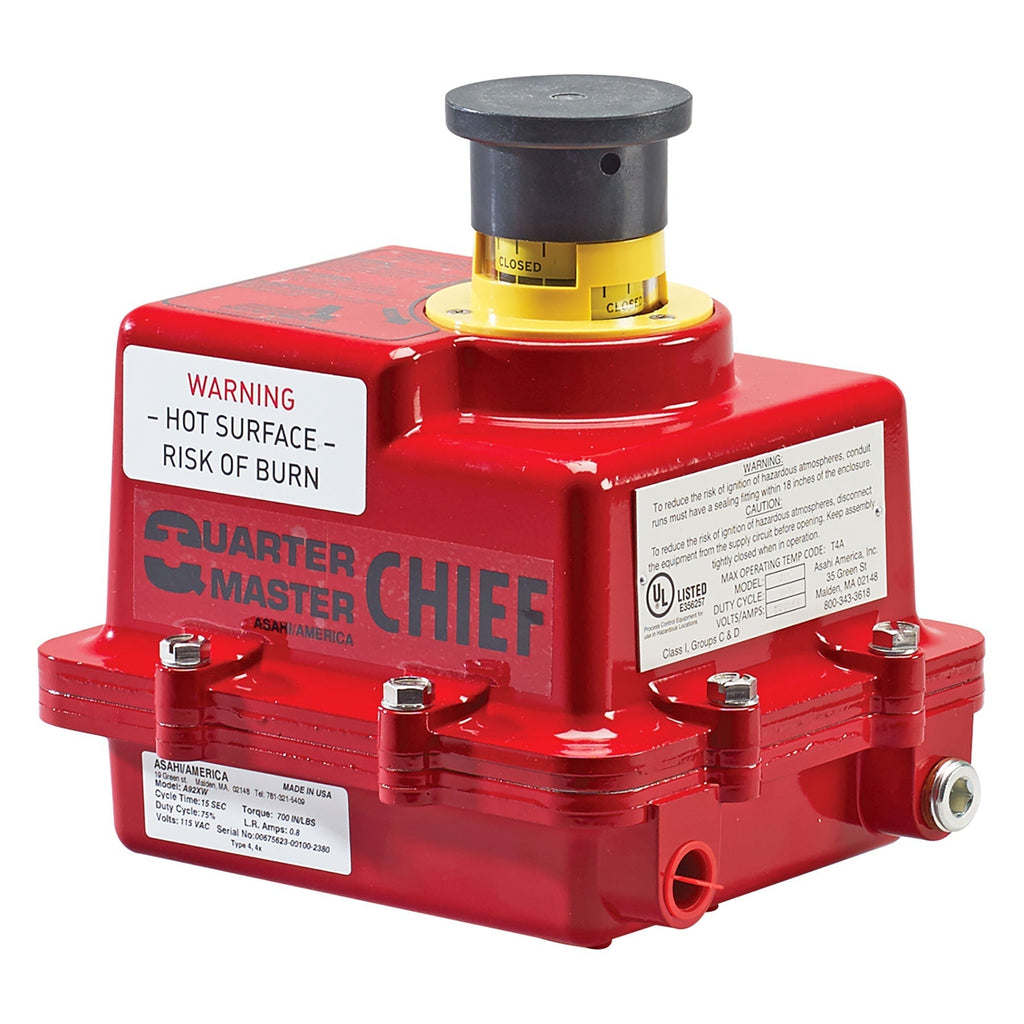

Series 92 Reversible Electric Actuator

Series 92 Quarter Master Chief

The Series 92 electric actuator is our primary electric actuator for most butterfly valves, and our larger ball valves, as well as multi-turn diaphragm and gate valves.

Features include 2-SPDT switches, output 400 in/lbs - 2000 in/lbs torque, conduit 1/2 in. NPT.

Ideal Applications Include:

Remote locations, locations with no air supply, colder temperatures, larger valves

Features & Benefits:

• Motor: Reversing, brushless, capacitor run 120 VAC 50/60 Hz, single phase.

• Overload Protection: Integral thermal overload protection for motor winding with automatic reset.

• Gear Train: Permanently lubricated, solid gear that is Rockwell hardened.

• Corrosion Resistant Housing: thermally bonded powder coat finish.

• ISO mounting configuration

• Position Indication: Highly visible beacon position indicator for positive indication of valve position, even at a distance.

• Declutchable Manual Override: Pull up on indicator knob, insert 5/8" wrench onto flats and rotate.

• Enclosure: Weatherproof NEMA Type 4X.

• CE Compliant Motor: All 115VAC and 230VAC motors are CE compliant and stamped as such.

• Extended Duty Cycles: Our extended duty cycles are ideal for modulating and high cycling applications.

• ABS Product Type Approved for use in Marine and Offshore Applications
