Series 79 Pneumatic Actuator

AsahiSKU: 1794015
No reviews

Grid List
1-1/2 in. Air-Air Butterfly Series 79 Pneumatic Actuator
Size:
Type:
Valve:
Price:
Sale price$516.00
Description
SKU
Price
Qty.
1-1/2 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794015
$516.00
2 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794020
$516.00
2-1/2 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794025
$516.00
3 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794030
$618.00
4 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794040
$618.00
5 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794050
$815.00
6 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794060
$910.00
8 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794080
$1,626.00
10 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794100
$1,626.00
12 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794120
$2,460.00
14 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794140
$2,851.00
16 in. Air-Air Butterfly Series 79 Pneumatic Actuator
1794160
$2,851.00
1-1/2 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795015
$738.00
2 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795020
$738.00
2-1/2 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795025
$767.00
3 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795030
$1,031.00
4 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795040
$1,031.00
5 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795050
$1,473.00
6 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795060
$1,473.00
8 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795080
$2,482.00
10 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795100
$2,482.00
12 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795120
$6,103.00
14 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795140
$12,698.00
16 in. Air-Spring Butterfly Series 79 Pneumatic Actuator
1795160
$12,698.00
1/2 in. Air-Air Ball Series 79 Pneumatic Actuator
2301005
$228.00
3/4 in. Air-Air Ball Series 79 Pneumatic Actuator
2301007
$228.00
1 in. Air-Air Ball Series 79 Pneumatic Actuator
2301010
$228.00
1-1/4 in. Air-Air Ball Series 79 Pneumatic Actuator
2301012
$228.00
1-1/2 in. Air-Air Ball Series 79 Pneumatic Actuator
2301015
$228.00
2 in. Air-Air Ball Series 79 Pneumatic Actuator
2301020
$228.00
2-1/2 in. Air-Air Ball Series 79 Pneumatic Actuator
2301025
$659.00
3 in. Air-Air Ball Series 79 Pneumatic Actuator
2301030
$804.00
4 in. Air-Air Ball Series 79 Pneumatic Actuator
2301040
$926.00
6 in. Air-Air Ball Series 79 Pneumatic Actuator
2301060
$926.00
1/2 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302005
$243.00
3/4 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302007
$243.00
1 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302010
$243.00
1-1/4 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302012
$410.00
1-1/2 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302015
$410.00
2 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302020
$564.00
2-1/2 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302025
$1,081.00
3 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302030
$1,439.00
4 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302040
$1,439.00
6 in. Air-Spring Ball Series 79 Pneumatic Actuator
2302060
$1,439.00

Product has been added to your cart

Please input the Quantity!

Description

Series 79 PAG

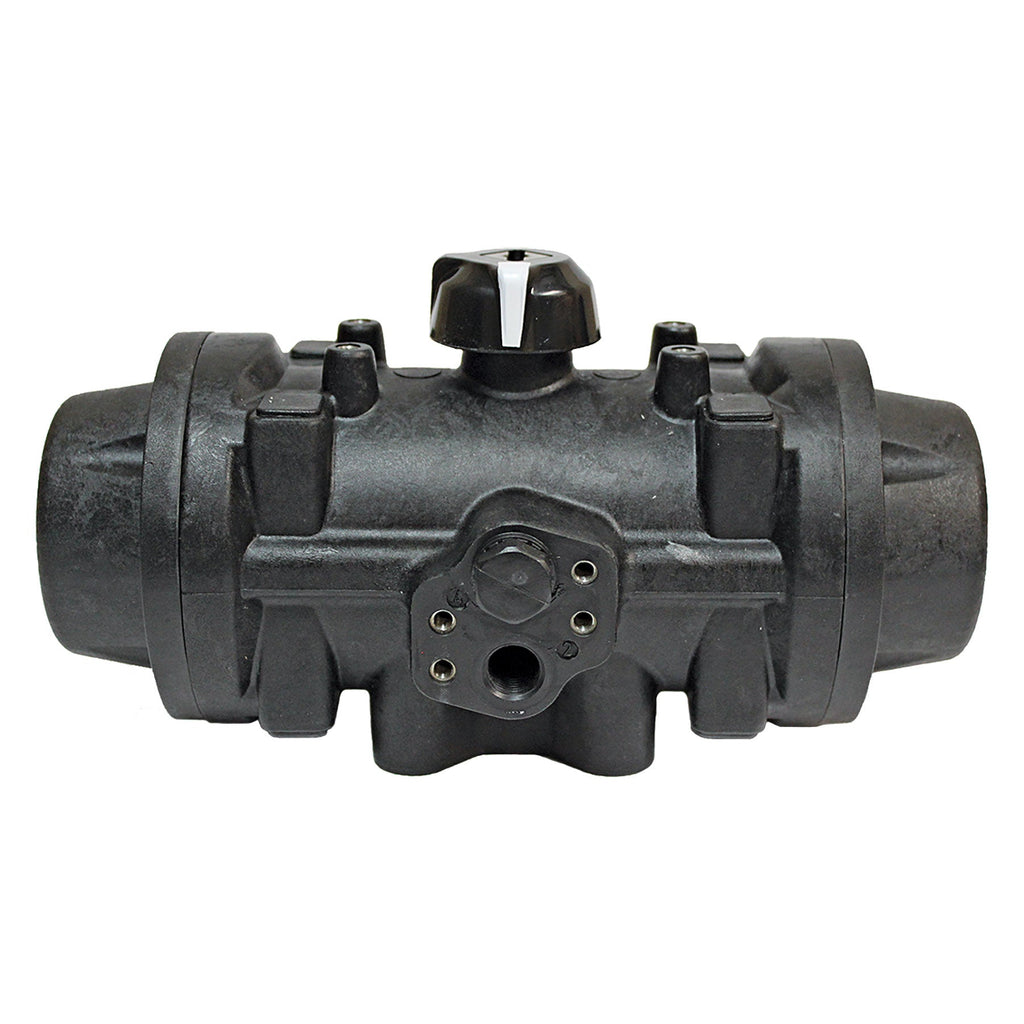

Series 79 PAG pneumatic actuators have a glass-reinforced polyamide housing for chemical resistance and high strength. The actuator functions using a double piston rack and pinion arrangement for a smooth torque profile throughout the actuator stroke. Air to spring models feature a concentric spring set for consistent output torque. The base of the actuator has an ISO output drive and bolt circle for easy mounting to quarter turn valves. The top of the actuator has a visual position indicator and a NAMUR mounting pad to accommodate mounting accessories. The air ports are 1/4 in. NPT and have a NAMUR bolt pattern to accommodate flush mount solenoids.

Ideal Applications Include:

Chemical Processing, Bleach Plants, Aquariums, Mining, Water Treatment, Landfills, Swimming Pools, Power Plants

Features & Benefits:

  • Actuator body and end caps constructed of glass-filled polyamide
  • Double piston, rack and pinion operation
  • 80 psi to 120 psi recommended operating pressures
  • Fail positions can be specified for air to spring actuators
  • Visual position indicator
  • -25 to 195 degrees F operating temperature range
  • 1/4 in. NPT air connections
  • ISO output drive and bolt pattern for easy mounting
  • NAMUR accessory mounting
  • Outout shaft is 300 stainless steel
Note: Actuated and Flanged connection valves are special order with a 3-4 week average lead time.
